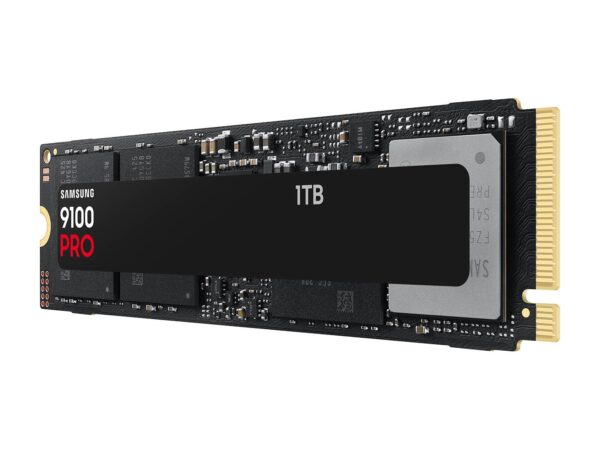

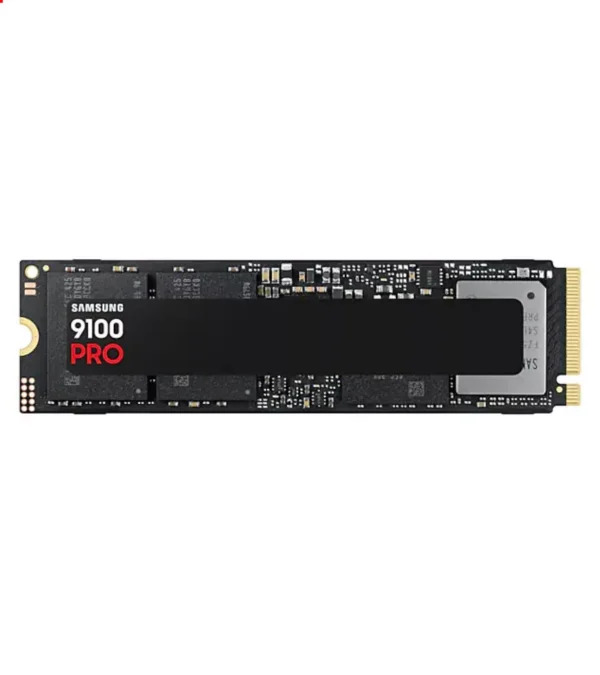

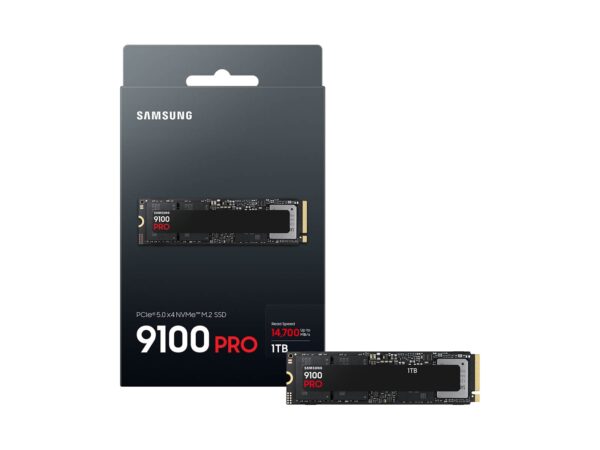

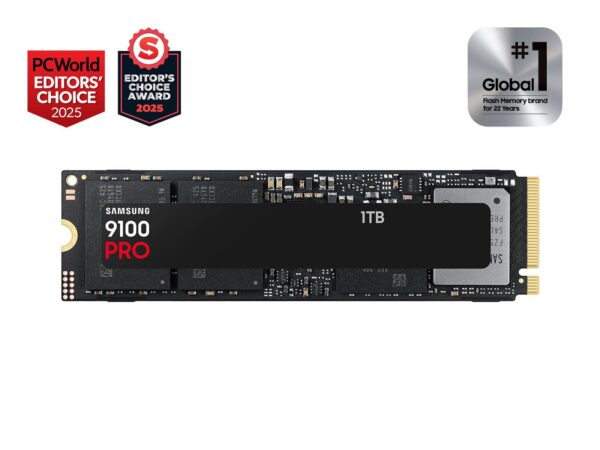

Samsung 9100 PRO Pcle 5.0 NVMe M.2 SSD

Specifications

• General Feature
  Application

  Client PCs, Game Consoles

  Capacity

  ?

  1,000GB (1GB=1 Billion byte by IDEMA) * Actual usable capacity may be less (due to formatting, partitioning, operating system, applications or otherwise)

  Form Factor

  M.2 (2280)

  Interface

  PCIe® 5.0 x4, NVMe™ 2.0

  Dimension (WxHxD)

  3.2 x 0.9 x 0.09 in

  Weight

  0.02 lbs

  Storage Memory

  Samsung V-NAND TLC

  Controller

  ?

  Samsung in-house Controller

  Cache Memory

  Samsung 1GB Low Power DDR4X SDRAM

  Shipping Weight

  0.16 lbs
• Special Feature
  TRIM Support

  Supported

  S.M.A.R.T Support

  Supported

  GC (Garbage Collection)

  Auto Garbage Collection Algorithm

  Encryption Support

  AES 256-bit Encryption (Class 0)TCG/Opal IEEE1667 (Encrypted drive)

  WWN Support

  Not supported

  Device Sleep Mode Support

  Yes
• Performance
  Sequential Read

  Up to 14,700 MB/s * Performance may vary based on system hardware & configuration

  Sequential Write

  Up to 13,300 MB/s * Performance may vary based on system hardware & configuration

  Random Read

  Up to 1,850,000 IOPS * Performance may vary based on system hardware & configuration

  Random Write

  Up to 2,600,000 IOPS * Performance may vary based on system hardware & configuration
• Environment
  Average Power Consumption (system level)

  Average: Read 7.6 W / Write 7.2 W* Actual power consumption may vary depending on system hardware & configuration

  Power consumption (Idle)

  Typical 4 mW * Actual power consumption may vary depending on system hardware & configuration

  Power Consumption (Device Sleep)

  Typical 3.3 mW * Actual power consumption may vary depending on system hardware & configuration

  Allowable Voltage

  3.3 V ± 5 % Allowable voltage

  Reliability (MTBF)

  1.5 Million Hours Reliability (MTBF)

  Operating Temperature

  0 – 70 ℃ Operating Temperature

  Shock

  ?

  1,500 G & 0.5 ms (Half sine)
• Accessories
  Installation Kit

  Not Available
• Software

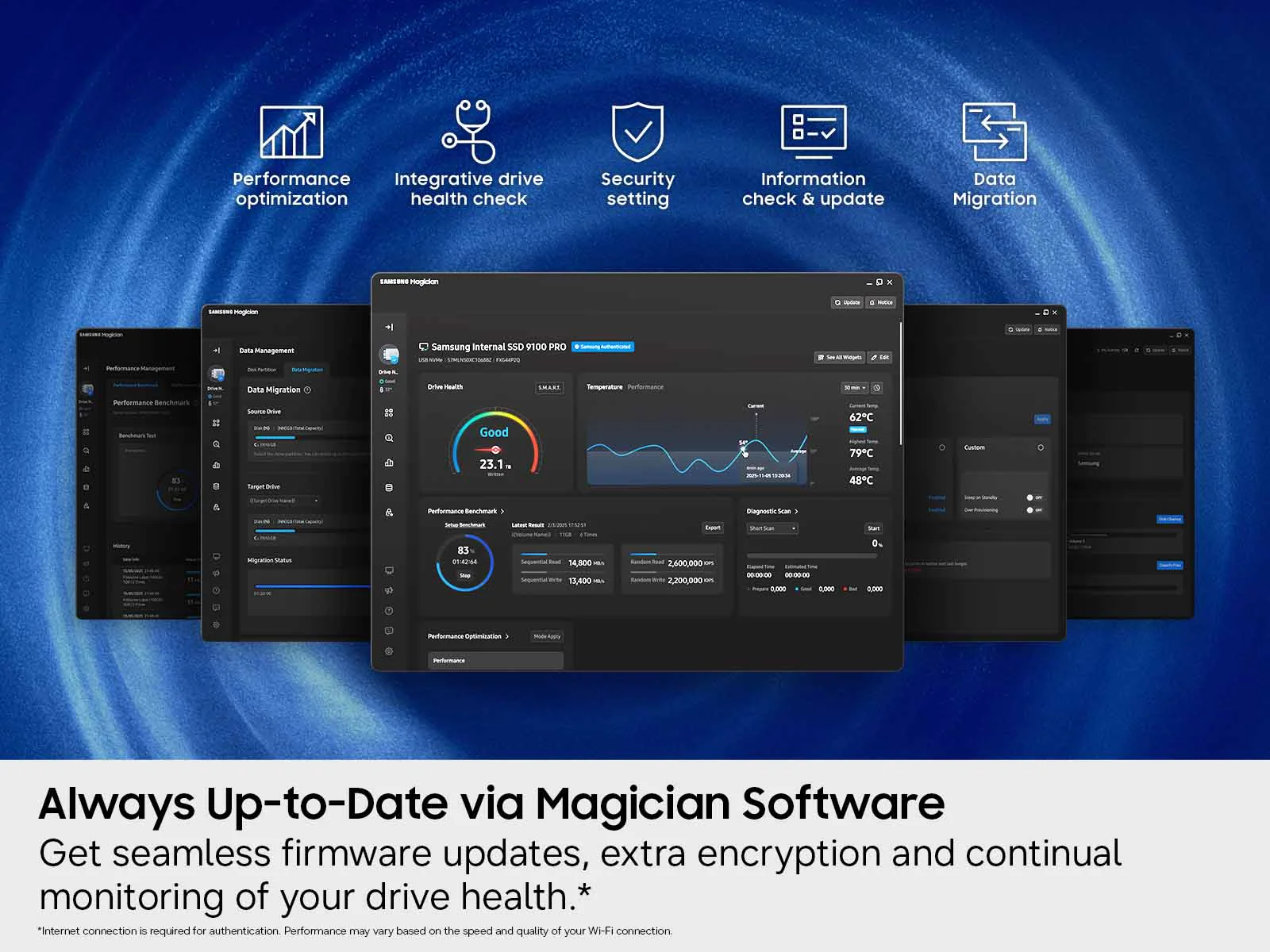

  Management SW

  Magician Software for SSD management
