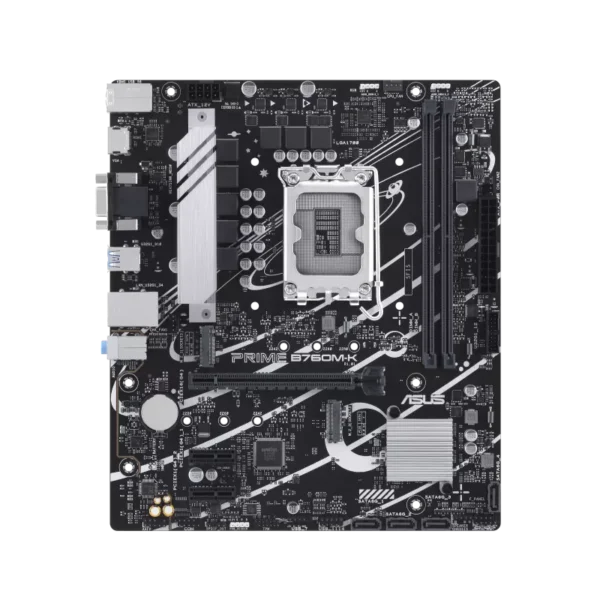

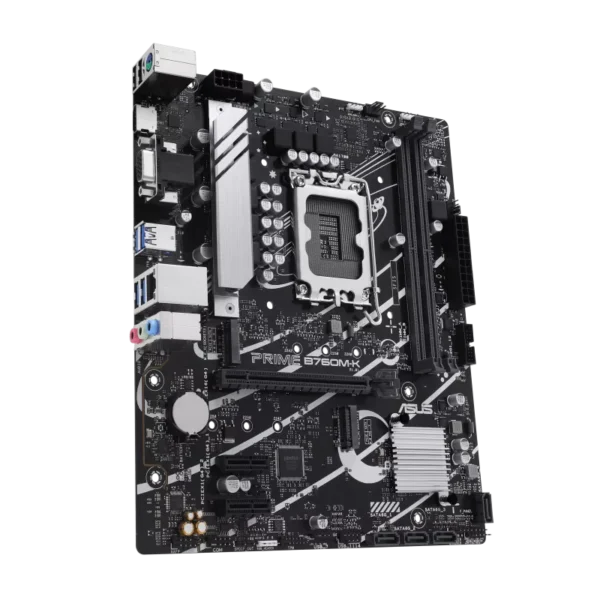

ASUS PRIME B760M-K D5 Motherboard Intel

PRIME B760M-K

—

Intel® Socket LGA1700 for Intel® Core™ 14th & 13th Gen Processors, Intel® Core™ 12th Gen, Pentium® Gold and Celeron® Processors*

Supports Intel® Turbo Boost Technology 2.0 and Intel® Turbo Boost Max Technology 3.0**

* Refer to www.asus.com for CPU support list.
** Intel® Turbo Boost Max Technology 3.0 support depends on the CPU types.

Intel® B760 Chipset

2 x DIMM slots, Max. 96GB, DDR5 8000(OC)/7800(OC)/7600(OC)/7400(OC)/7200(OC)/7000(OC)/6800(OC)/6600(OC)/6400(OC)/6200(OC)/6000(OC)/5800(OC)/5600/5400/5200/5000/4800 Non-ECC, Un-buffered Memory*

Dual Channel Memory Architecture

Supports Intel® Extreme Memory Profile (XMP)

* Supported memory types, data rate (speed), and number of DRAM modules vary depending on the CPU and memory configuration, for more information please refer to CPU/Memory Support list under the Support tab of product information site or visit https://www.asus.com/support/.
* Non-ECC, un-buffered DDR5 memory supports On-Die ECC function.

1 x VGA port
1 x HDMI™ port*** Graphics specifications may vary between CPU types. Please refer to www.intel.com for any updates.
** Supports 4K@60Hz as specified in HDMI™ 2.1.

Intel® Core™ Processors (14th & 13th & 12th Gen)
1 x PCIe 4.0 x16 slotIntel® B760 Chipset
2 x PCIe 4.0 x1 slots

– To ensure compatibility of the device installed, please refer to https://www.asus.com/support/ for the list of supported peripherals.

Total supports 2 x M.2 slots and 4 x SATA 6Gb/s ports*

Intel® Core™ Processors (14th & 13th & 12th Gen)
M.2_1 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode)

Intel® B760 Chipset
M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode)
4 x SATA 6Gb/s ports

* Intel® Rapid Storage Technology supports SATA RAID 0/1/5/10.

1 x Realtek 2.5Gb Ethernet

—

Rear USB (Total 6 ports)
4 x USB 3.2 Gen 1 (5G) ports (4 x Type-A)
2 x USB 2.0 ports (2 x Type-A)Front USB (Total 5 ports)
1 x USB 3.2 Gen 1 (5G) header supports 2 additional USB 3.2 Gen 1 ports
2 x USB 2.0 headers support 3 additional USB 2.0 ports

Realtek 7.1 Surround Sound High Definition Audio CODEC*
– Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking
– Supports up to 24-Bit/192 kHz playbackAudio Features
– Audio Shielding
– Premium audio capacitors
– Dedicated audio PCB layers

* A chassis with an HD audio module in the front panel is required to support 7.1 Surround Sound audio output.

4 x USB 3.2 Gen 1 (5G) ports (4 x Type-A)
2 x USB 2.0 ports (2 x Type-A)
1 x VGA port
1 x HDMI™ port
1 x Realtek 2.5Gb Ethernet port
3 x Audio jacks
1 x PS/2 Keyboard/Mouse combo port

Fan and Cooling related
1 x 4-pin CPU Fan header
2 x 4-pin Chassis Fan headersPower related
1 x 24-pin Main Power connector
1 x 8-pin +12V Power connector

Storage related
2 x M.2 slots (Key M)
4 x SATA 6Gb/s ports

USB
1 x USB 3.2 Gen 1 (5G) header supports 2 additional USB 3.2 Gen 1 ports
2 x USB 2.0 headers support 3 additional USB 2.0 ports

Miscellaneous
2 x Addressable Gen 2 headers
1 x Aura RGB header
1 x Clear CMOS header
1 x COM Port header
1 x Front Panel Audio header (AAFP)
1 x S/PDIF Out header
1 x Speaker header
1 x SPI TPM header (14-1pin)
1 x 10-1 pin System Panel header

ASUS 5X PROTECTION III
– DIGI+ VRM
– LANGuard
– Overvoltage Protection
– SafeSlot Core
– Stainless-Steel Back I/OASUS Q-Design
– Q-DIMM
– Q-LED Core
– Q-Slot

ASUS EZ DIY
– ProCool

ASUS Thermal Solution
– VRM heatsink design

Aura Sync
– Aura RGB header
– Addressable Gen 2 headers

ASUS Exclusive Software
Armoury Crate
– Aura Sync
– Fan Xpert 2+
– Power Saving
– Two-Way AI Noise Cancellation
AI Suite 3
– DIGI+ VRM
– PC Cleaner
ASUS CPU-Z
Norton 360 Deluxe (60 Days Free Trial)
WinRARUEFI BIOS
ASUS EZ DIY
– ASUS CrashFree BIOS 3
– ASUS EZ Flash 3
– ASUS UEFI BIOS EZ Mode

128 Mb Flash ROM, UEFI AMI BIOS

WOL by PME, PXE

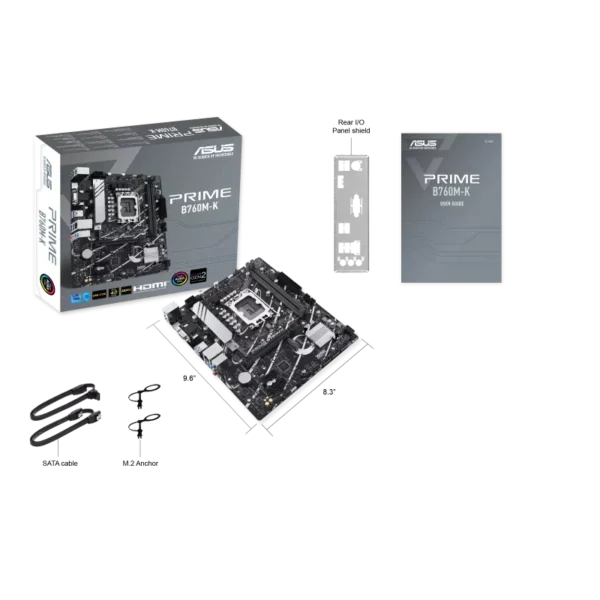

Cables
2 x SATA 6Gb/s cablesMiscellaneous
1 x I/O Shield
2 x M.2 anchors

1 x User guide

Windows® 11, Windows® 10 64-bit

mATX Form Factor
9.6 inch x 8.3 inch (24.4cm x 21.1cm)
