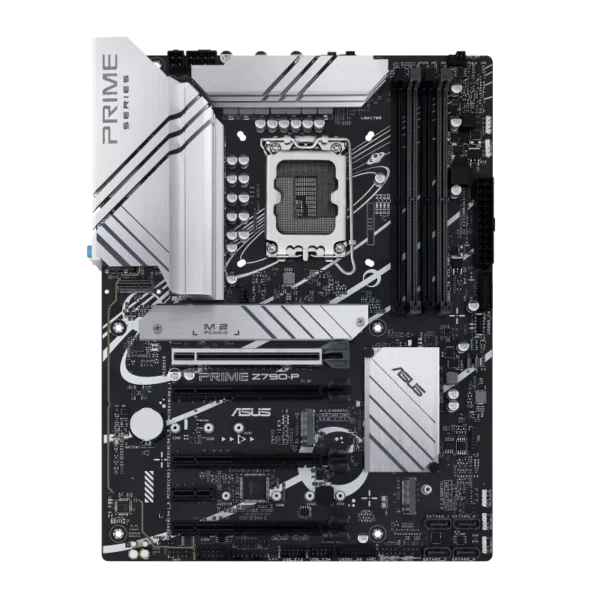

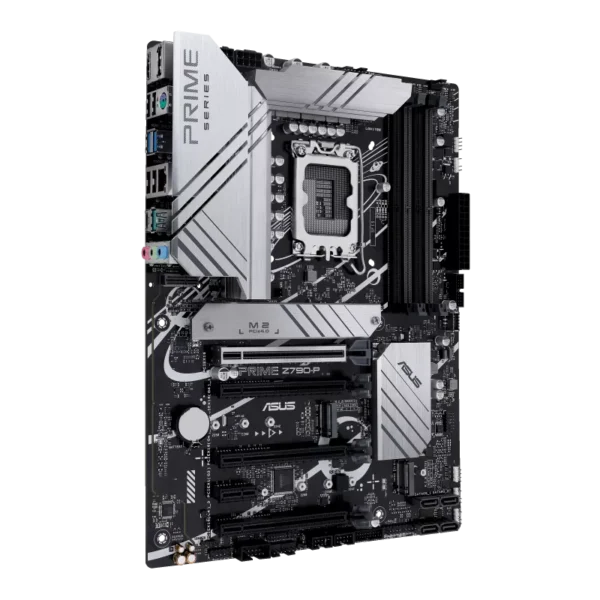

ASUS PRIME Z790-P Motherboard Intel

PRIME Z790-P

—

Intel® Socket LGA1700 for Intel® Core™ 14th & 13th Gen Processors, Intel® Core™ 12th Gen, Pentium® Gold and Celeron® Processors*

Supports Intel® Turbo Boost Technology 2.0 and Intel® Turbo Boost Max Technology 3.0**

* Refer to www.asus.com for CPU support list.
** Intel® Turbo Boost Max Technology 3.0 support depends on the CPU types.

Intel® Z790 Chipset

4 x DIMM, Max. 192GB, DDR5 7200+(OC)/7000(OC)/6800(OC)/6600(OC)/6400(OC)/ 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600/ 5400/ 5200/ 5000/ 4800 Non-ECC, Un-buffered Memory*

Dual Channel Memory Architecture

Supports Intel® Extreme Memory Profile (XMP)

OptiMem II

* Supported memory types, data rate(Speed), and number of DRAM modules vary depending on the CPU and memory configuration, for more information refer to www.asus.com for memory support list.
* Non-ECC, un-buffered DDR5 memory supports On-Die ECC function.

1 x DisplayPort**
1 x HDMI® port***

* Graphics specifications may vary between CPU types. Please refer to www.intel.com for any updates.
** Supports max. 4K@60Hz as specified in DisplayPort 1.4.
*** Supports 4K@60Hz as specified in HDMI 2.1.

Intel® Core™ Processors (14th & 13th & 12th Gen)*
1 x PCIe 5.0 x16 slot

Intel® Z790 Chipset
3 x PCIe 4.0 x16 slots (support x4 mode)
1 x PCIe 3.0 x1 slot

* Please check the PCIe bifurcation table on the support site (https://www.asus.com/support/FAQ/1037507/).
– To ensure compatibility of the device installed, please refer to https://www.asus.com/support/ for the list of supported peripherals.

Total supports 3 x M.2 slots and 4 x SATA 6Gb/s ports*

Intel® Core™ Processors (14th & 13th & 12th Gen)*
M.2_1 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 4.0 x4 mode)

Intel® Z790 Chipset
M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode)
M.2_3 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 4.0 x4 & SATA modes)
4 x SATA 6Gb/s ports

* Intel® Rapid Storage Technology supports PCIe RAID 0/1/5/10, SATA RAID 0/1/5/10.

1 x Realtek 2.5Gb Ethernet

Vertical M.2 slot only (Key E, CNVi & PCIe)*

*Wi-Fi module is sold separately.

Rear USB (Total 8 ports)
1 x USB 3.2 Gen 2×2 port (1 x USB Type-C®)
1 x USB 3.2 Gen 2 port (1 x Type-A)
2 x USB 3.2 Gen 1 ports (2 x Type-A)
4 x USB 2.0 ports (4 x Type-A)

Front USB (Total 9 ports)
1 x USB 3.2 Gen 2 connector (supports USB Type-C®)
2 x USB 3.2 Gen 1 headers support 4 additional USB 3.2 Gen 1 ports
2 x USB 2.0 headers support 4 additional USB 2.0 ports

* USB_E1 port, USB_E2 port, USB_E3 port and USB_E4 port share the bandwidth.
* USB_E5 port, USB_E6 port, USB_E7 port and USB_E8 port share the bandwidth.

Realtek 7.1 Surround Sound High Definition Audio CODEC*
– Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking
– Supports up to 24-Bit/192 kHz playback

Audio Features
– Audio Shielding
– Premium audio capacitors
– Dedicated audio PCB layers

* A chassis with an HD audio module in the front panel is required to support 7.1 Surround Sound audio output.

1 x USB 3.2 Gen 2×2 port (1 x USB Type-C®)
1 x USB 3.2 Gen 2 port (1 x Type-A)
2 x USB 3.2 Gen 1 ports (2 x Type-A)
4 x USB 2.0 ports (4 x Type-A)
1 x DisplayPort
1 x HDMI® port
1 x Vertical M.2 slot (Key E)
1 x Realtek 2.5Gb Ethernet port
3 x Audio jacks
1 x PS/2 Keyboard/Mouse combo port

Fan and Cooling related
1 x 4-pin CPU Fan header
1 x 4-pin CPU OPT Fan header
1 x 4-pin AIO Pump header
3 x 4-pin Chassis Fan headers

Power related
1 x 24-pin Main Power connector
1 x 8-pin +12V Power connector
1 x 4-pin +12V Power connector

Storage related
3 x M.2 slots (Key M)
4 x SATA 6Gb/s ports

USB
1 x USB 3.2 Gen 2 connector (supports USB Type-C®)
2 x USB 3.2 Gen 1 headers support 4 additional USB 3.2 Gen 1 ports
2 x USB 2.0 headers support 4 additional USB 2.0 ports

Miscellaneous
3 x Addressable Gen 2 headers
2 x Aura RGB headers
1 x Clear CMOS header
1 x COM Port header
1 x Front Panel Audio header (AAFP)
1 x S/PDIF Out header
1 x SPI TPM header (14-1pin)
1 x 20-5pin System Panel header
1 x Thunderbolt™ (USB4®) Header

ASUS 5X PROTECTION III
– DIGI+ VRM (- Digital power design with DrMOS)
– LANGuard
– Overvoltage Protection
– SafeSlot Core+
– Stainless-Steel Back I/O

ASUS Q-Design
– Q-DIMM
– Q-Slot
– Q-LED Core

ASUS Thermal Solution
– Flexible M.2 heatsink
– VRM heatsink design

ASUS EZ DIY
– ProCool

Aura Sync
– Aura RGB headers
– Addressable Gen 2 headers

ASUS Exclusive Software
Armoury Crate
– Aura Sync
– Fan Xpert 4 (with AI Cooling II)
– Power Saving
AI Suite 3
-TurboV EVO
-PC Cleaner
-DIGI+ VRM
ASUS CPU-Z
Norton 360 Deluxe (60 Days Free Trial)
WinRAR

UEFI BIOS
ASUS EZ DIY
– ASUS CrashFree BIOS 3
– ASUS EZ Flash 3
– ASUS UEFI BIOS EZ Mode

192 (128+64) Mb Flash ROM, UEFI AMI BIOS

WOL by PME, PXE

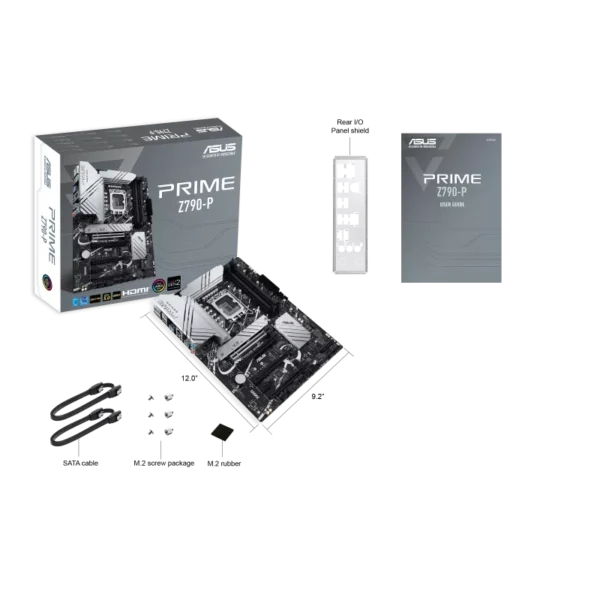

Cables
2 x SATA 6Gb/s cables

Miscellaneous
1 x I/O Shield
1 x M.2 Rubber Package
2 x Screw packages for M.2 SSD

1 x User guide

Windows® 11, Windows® 10 64-bit

ATX Form Factor
12 inch x 9.2 inch ( 30.5 cm x 23.4 cm )
