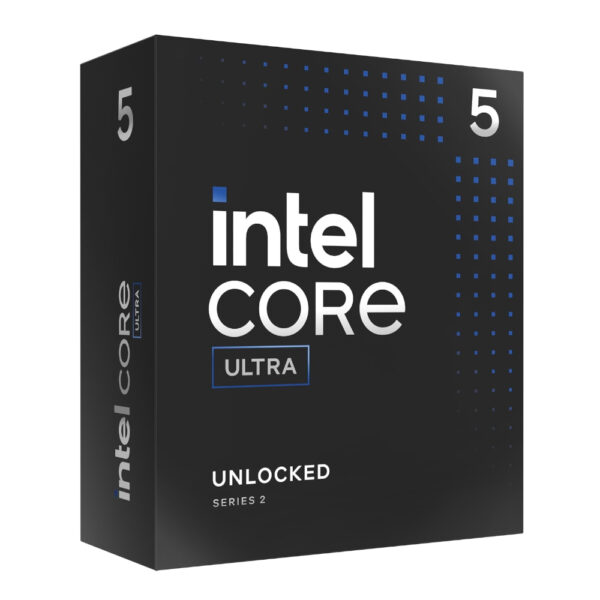

Intel® Core™ Ultra 5 245K 3.6Ghz 14-Core CPU

Total Cores: 14
# of Performance-cores: 6
# of Efficient-cores: 8
# of Low Power Efficient-cores: 0
Total Threads: 14

Max Turbo Frequency: 5.2 GHz
Performance-core Max Turbo Frequency: 5.2 GHz
Efficient-core Max Turbo Frequency: 4.6 GHz
Performance-core Base Frequency: 4.2 GHz
Efficient-core Base Frequency: 3.6 GHz

Cache: 24 MB Intel® Smart Cache
Total L2 Cache: 26 MB

Processor Base Power: 125 W
Maximum Turbo Power: 159 W

Intel® Deep Learning Boost (Intel® DL Boost) on CPU: Yes
AI Software Frameworks Supported by CPU: OpenVINO™, WindowsML, DirectML, ONNX RT, WebNN
CPU Lithography: TSMC N3B

Marketing Status: Launched
Launch Date: Q4’24
Embedded Options Available: No
Use Conditions: PC/Client/Tablet, Workstation

Datasheet: View now

Max Memory Size (dependent on memory type): 256 GB
Memory Types: Up to DDR5 6400 MT/s
Max # of Memory Channels: 2
ECC Memory Supported ‡: Yes

GPU Name ‡: Intel® Graphics
Graphics Base Frequency: 300 MHz
Graphics Max Dynamic Frequency: 1.9 GHz
GPU Peak TOPS (Int8): 8
Xe-cores: 4
# of Displays Supported ‡: 4
Device ID: 0x7D67

Graphics Output: eDP1.4b, DP 2.1 UHBR20, HDMI 2.1 FRL
Max Resolution (HDMI) ‡: 4096 x 2304 @ 60Hz (HDMI 2.1 TMDS) / 7680 x 4320 @ 60Hz (HDMI 2.1 FRL)
Max Resolution (DP) ‡: 7680 x 4320 @ 60Hz
Max Resolution (eDP – Integrated Flat Panel) ‡: 3840 x 2400 @ 120Hz

API Support: DirectX* 12, OpenGL* 4.5, OpenCL* 3
Video Accel: H.264 & H.265 (HEVC) Hardware Encode/Decode, AV1 Encode/Decode, Intel® Quick Sync Video

Intel® Deep Learning Boost (Intel® DL Boost) on GPU: Yes
AI Software Frameworks Supported by GPU: OpenVINO™, WindowsML, DirectML, ONNX RT, WebGPU

NPU Name ‡: Intel® AI Boost
NPU Peak TOPS (Int8): 13
Sparsity Support: Yes
Windows Studio Effects Support: Yes
AI Software Frameworks Supported by NPU: OpenVINO™, WindowsML, DirectML, ONNX RT, WebNN

Direct Media Interface (DMI) Revision: 4
Max # of DMI Lanes: 8
Intel® Thunderbolt™ 4: Yes
Scalability: 1S Only

PCI Express Revision: 5.0 and 4.0
PCI Express Configurations ‡: Up to 1×16+2×4, 2×8+2×4, 1×8+4×4
Max # of PCI Express Lanes: 24

Sockets Supported: FCLGA1851
Thermal Solution Specification: PCG 2020A
Max Operating Temperature: 105 °C
Package Size: 45 mm x 37.5 mm

Intel® Gaussian & Neural Accelerator: 3.5
Intel® Thread Director: Yes
Intel® Speed Shift Technology: Yes
Intel® Turbo Boost Technology ‡: 2.0
Intel® Hyper-Threading Technology ‡: No
Intel® 64 ‡: Yes

Instruction Set: 64-bit
Instruction Set Extensions: Intel® SSE4.1, Intel® SSE4.2, Intel® AVX2

Idle States: Yes
Enhanced Intel SpeedStep® Technology: Yes
Thermal Monitoring Technologies: Yes
Intel® Volume Management Device (VMD): Yes

Intel vPro® Eligibility ‡: Intel vPro® Enterprise
Intel® Threat Detection Technology (TDT): Yes
Intel® Active Management Technology (AMT) ‡: Yes
Intel® Standard Manageability (ISM) ‡: Yes
Intel® Remote Platform Erase (RPE) ‡: Yes
Intel® One-Click Recovery ‡: Yes
Intel® Secure Key: Yes
Intel® Control-Flow Enforcement Technology: Yes
Intel® Total Memory Encryption – Multi Key: Yes
Intel® AES New Instructions: Yes
Intel® Trusted Execution Technology ‡: Yes
Execute Disable Bit ‡: Yes
Intel® OS Guard: Yes
Intel® Boot Guard: Yes
Mode-based Execute Control (MBEC): Yes
Intel® Stable IT Platform Program (SIPP): Yes

Virtualization Technologies:
– Intel® Virtualization Technology with Redirect Protection (VT-rp) ‡
– Intel® Virtualization Technology (VT-x) ‡
– Intel® Virtualization Technology for Directed I/O (VT-d) ‡
– Intel® VT-x with Extended Page Tables (EPT) ‡
