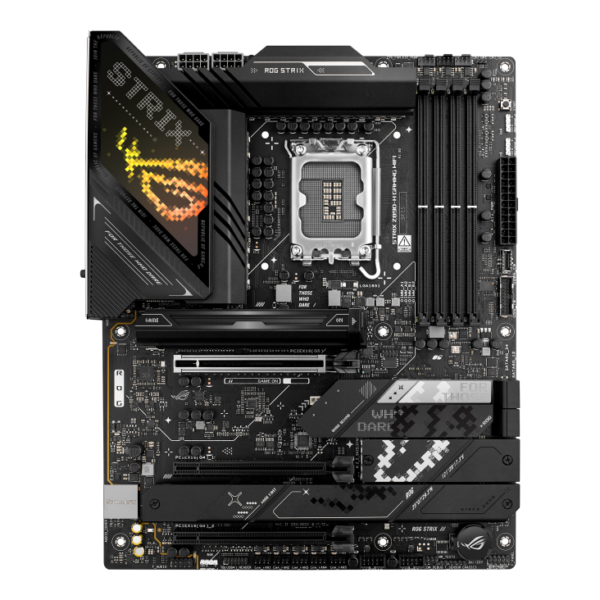

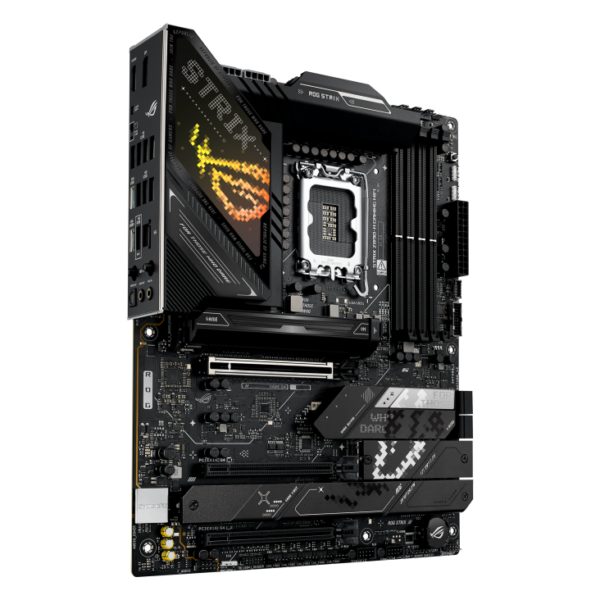

ASUS ROG STRIX Z890-H Wifi Motherboard Intel

ROG STRIX Z890-H GAMING WIFI

Please see the updated OS support requirements for the Intel® Core Ultra 200S Series below:

• Intel® Core Ultra 200S Series: Supports Windows 10 (version 21H2 and later) and Windows 11 (version 22H2 and later).
• Intel® Core Ultra 200S Plus Series: Windows 11 (version 25H2 and later) for full compatibility.

Intel® Socket LGA1851 for Intel® Core™ Ultra Processors (Series 2)
Supports Intel® Turbo Boost Technology 2.0 and Intel® Turbo Boost Max Technology 3.0**

* Refer to https://www.asus.com/support/download-center/ for CPU support list.
** Intel® Turbo Boost Max Technology 3.0 support depends on the CPU types.

Intel® Z890 Chipset

4 x DIMM slots, max. 256GB, DDR5
Support up to 9066+MT/s (OC), Non-ECC, Un-buffered, Clocked Unbuffered DIMM (CUDIMM)*
Dual channel memory architecture
Supports Intel® Extreme Memory Profile (XMP) memory module
Supports DIMM Flex, DIMM Fit, ASUS Enhanced Memory Profile III (AEMP III)

*Adjustments will be made based on the specifications of mass-produced memory products available on the market.
* Supported memory types, data rate (speed), and number of DRAM modules vary depending on the CPU and memory configuration. Please refer to CPU/Memory Support list at https://www.asus.com/support/download-center/.
* Non-ECC, un-buffered DDR5 memory supports On-Die ECC function.

1 x DisplayPort**
1 x HDMI™ port***

* Graphics specifications may vary between CPU types. Please refer to www.intel.com for any updates.
** Supports max. 8K@60Hz as specified in DisplayPort 1.4.
*** Supports 4K@60Hz as specified in HDMI 2.1.
**** VGA resolution support depends on processors’ or graphic cards’ resolution.

Intel® Core™ Ultra Processors (Series 2)
1 x PCIe 5.0 x16 slot (supports x16 or x8/x4/x4 modes)

Intel® Z890 Chipset
2 x PCIe 4.0 x16 slots (supports x4 mode)

To ensure compatibility of the device installed, please refer to https://www.asus.com/support/download-center/ for the list of supported peripherals.

Supports 4 x M.2 slots and 4 x SATA 6Gb/s ports*

Intel® Core™ Ultra Processors (Series 2)
M.2_1 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 5.0 x4 mode)
M.2_2 slot (Key M), type 2280 (supports PCIe 4.0 x4 mode)

Intel® Z890 Chipset
M.2_3 slot (Key M), type 2280/22110 (supports PCIe 4.0 x4 mode)
M.2_4 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 & SATA modes)
4 x SATA 6Gb/s ports

* Intel® Rapid Storage Technology supports PCIe RAID 0/1/5, SATA RAID 0/1/5/10. M.2 slot from CPU only support RAID 0/1/5.

1 x Realtek 5G Ethernet
ASUS LANGuard

Wi-Fi 7*
2×2 Wi-Fi 7 (802.11be)
Supports 2.4/5/6GHz frequency band**
Supports Wi-Fi 7 160MHz bandwidth, up to 2.9Gbps transfer rate.
Bluetooth® v5.4***

*Wi-Fi features may vary depending on the operating system. For Windows 11, Wi-Fi 7 will require 24H2 or later for full functions. For Windows 10, no driver is available.
** Wi-Fi 6GHz frequency band and bandwidth regulatory may vary between countries.
*** The Bluetooth® version may vary; refer to the Wi-Fi module manufacturer’s website.

Rear USB (Total 10 ports)
2 x USB 20Gbps ports (1 x USB Type-C®* + 1 x USB Type-C® with up to 30W PD Fast-charge)**
4 x USB 10Gbps ports (4 x Type-A)
4 x USB 5Gbps ports (4 x Type-A)

Front USB (Total 7 ports)
1 x USB 20Gbps (1 x USB Type-C®)
1 x USB 5Gbps header support 2 additional USB 5Gbps ports
2 x USB 2.0 headers support 4 additional USB 2.0 ports

* USB Type-C® power delivery output: max. 5V/3A
** USB Type-C® power delivery output: 5V/9V max. 3A, 12V max 2.5A, 15V max. 2.0A

Realtek ALC1220P 7.1 Surround Sound High Definition Audio CODEC*
– Impedance sense, Internal audio Amplifier, Jack-detection, Multi-streaming, Front Panel Jack-retasking
– High quality 120 dB SNR stereo playback, 113 dB SNR recording
– Supports up to 32-Bit/192 kHz playback

Audio Features
– SupremeFX Shielding, Savitech SV3H712 AMP, Gold-plated audio jacks, Rear optical S/PDIF out, Premium audio capacitors

* Chassis with HD audio module required for 7.1 support. LINE OUT on rear does not support spatial audio; use front panel jack or USB device.

2 x USB 20Gbps (Type-C® PD Fast-charge)
4 x USB 10Gbps, 4 x USB 5Gbps
1 x DisplayPort, 1 x HDMI™
1 x Wi-Fi module, 1 x Realtek 5Gb Ethernet
2 x Gold-plated audio jacks, 1 x Optical S/PDIF out
1 x BIOS FlashBack™ button, 1 x Clear CMOS button

Cooling: 1x CPU, 1x CPU OPT, 1x AIO Pump, 5x Chassis Fan headers
Power: 1x 24-pin, 2x 8-pin +12V CPU
Storage: 4x M.2, 4x SATA 6Gb/s
USB: 1x USB 20Gbps (Type-C®), 1x 5Gbps header, 2x USB 2.0 headers
Misc: 3x Addressable Gen 2, Chassis Intrusion, CPU Over voltage, Front Audio, Start button, System Panel, Thermal Sensor, Thunderbolt™ (USB4®)

ASUS Q-Design: M.2 Q-Latch/Release/Slide, PCIe Slot Q-Release Slim, Q-Antenna, Q-Dashboard, Q-LED, Q-Slot
EZ DIY: BIOS FlashBack™, Clear CMOS, Pre-mounted I/O shield, ProCool II, SafeSlot, SafeDIMM
Aura Sync: Addressable Gen 2 headers

ROG/ASUS Exclusive: Armoury Crate (Aura Sync, Fan Xpert 4/AI Cooling II, GameFirst), AI Advisor, TurboV Core, Dolby Atmos.
UEFI BIOS: AI Overclocking Guide, NPU Boost, CrashFree BIOS 3, EZ Flash, EZ Mode.

256 Mb Flash ROM, UEFI AMI BIOS

WOL by PME, PXE

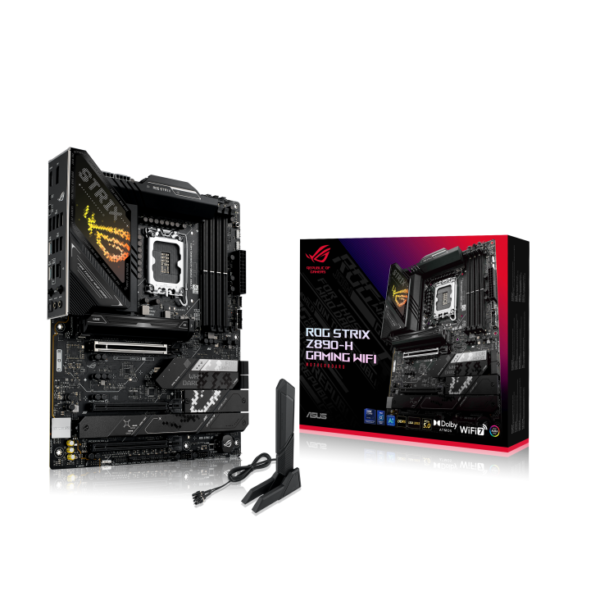

2 x SATA 6Gb/s cables, 1 x Thermal pad for M.2, 1 x ASUS WiFi Q-Antenna, Cable ties, M.2 Q-Latch package, ROG key chain, ROG Strix stickers, 4 x M.2 rubbers, Quick start guide.

Windows® 11 (22H2 & later)

ATX Form Factor
12 inch x 9.6 inch (30.5 cm x 24.4 cm)
