Specifications
Model
▼
ROG Hyperion GR701
Motherboard Support
▼
EATX (12″x10.9″), ATX, Micro-ATX, Mini-ITX
Drive Bays
▼
5 x 2.5″ Bay
2 x 2.5″/3.5″ Combo Bay
2 x 2.5″/3.5″ Combo Bay
Expansion Slots
▼
9 slots (plus 3 additional vertical slots)

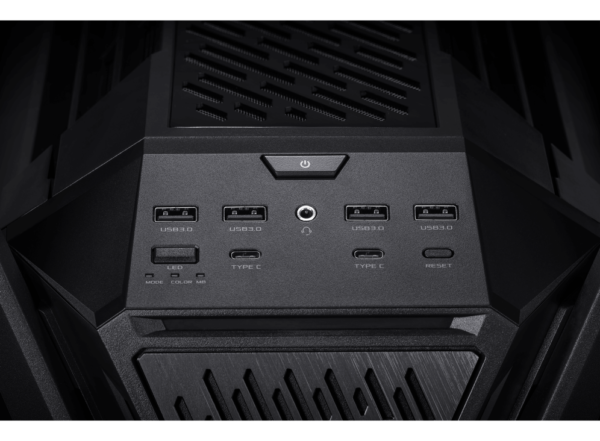

Front I/O Ports
▼
1 x Headphone / Microphone
4 x USB 3.2 Gen1
1 x USB 3.2 Gen2 Type C
1 x USB 4.0 Type C or 1 x USB 3.2 Gen 2×2 Type C*
LED Control Button
Reset Button
4 x USB 3.2 Gen1
1 x USB 3.2 Gen2 Type C
1 x USB 4.0 Type C or 1 x USB 3.2 Gen 2×2 Type C*
LED Control Button
Reset Button
* Note: This specification may vary by region.
Tempered Glass
▼
Left Side, Right Side
Radiator Support
▼
Front: 120 mm, 140 mm, 240 mm, 280 mm, 360 mm, 420 mm
Top: 120 mm, 140 mm, 240 mm, 280 mm, 360 mm, 420 mm
Rear: 120 mm, 140 mm
Top: 120 mm, 140 mm, 240 mm, 280 mm, 360 mm, 420 mm
Rear: 120 mm, 140 mm
Cooling Support
▼
Front: 3 x 120 mm / 3 x 140 mm
Top: 3 x 120 mm / 3 x 140 mm
Side: 3 x 120 mm
Rear: 1 x 120 mm / 1 x 140 mm
Top: 3 x 120 mm / 3 x 140 mm
Side: 3 x 120 mm
Rear: 1 x 120 mm / 1 x 140 mm
Pre-installed Fans
▼
Front: 3 x 140 mm (PWM)
Rear: 1 x 140 mm (PWM)
Rear: 1 x 140 mm (PWM)
Maximum Component Clearance
▼
Max CPU Cooler Height: 190 mm
Max GPU Length: 460 mm
Max PSU Length: 240 mm
Max Cable Management Space: 34 mm
Max GPU Length: 460 mm
Max PSU Length: 240 mm
Max Cable Management Space: 34 mm
Removable Dust Filters
▼
Front, Top, Bottom
Compatibility & Lighting
▼
AURA Sync: ARGB
BTF Motherboard Compatible: ROG Hyperion GR701 BTF Edition ONLY
BTF Motherboard Compatible: ROG Hyperion GR701 BTF Edition ONLY
Dimensions & Weight
▼
Dimensions: 268 x 639 x 659 mm
Weight: 20.8 Kg (Standard) / 21.3 Kg (GR701 BTF Edition)
Weight: 20.8 Kg (Standard) / 21.3 Kg (GR701 BTF Edition)
